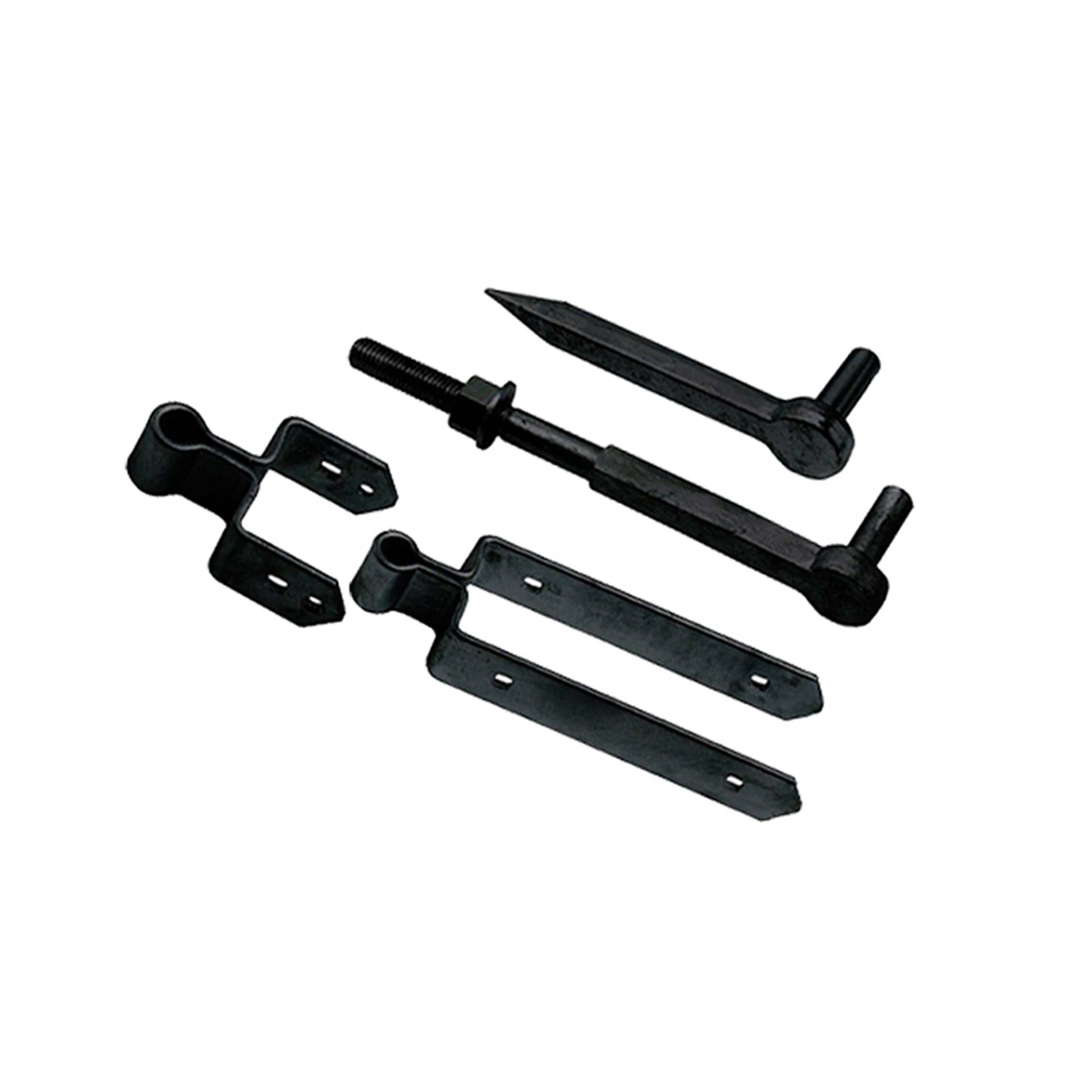

Adjustable Field Gate Kit – Black

Our ‘Adjustable Field Gate Kit’ are fully adjustable double strap hinge set allow easy installation and adjustment in the future. Hook to bolt has hole for security pin, to prevent removing gate. The full adjustability allows the installer to easily fit and adjust gates, to compensate for gate drop over time. Suitable to use on 3″ heavy duty field, drive and entrance gates. The black powder-coated finish for resistance to corrosion.

Size

  • 300mm300mm
  • 450mm450mm
  • 600mm600mm

Color

  • BlackBlack
Clear
SKU: N/A Categories: ,

Description

Adjustable Hook And Band Hinge Specification:
· Material: Iron
12″ Kit:
Top Strap Length (Straps only): 250mm
Top Strap Length (Including Pin Hole, i.e Total Length): 305mm
Bottom Strap Length (Straps only): 135mm
Bottom Strap Length (Including Pin Hole, i.e Total Length): 190mm
Suitable for Gate length: 3 Feet (0.915m) – 4 Feet (1.22m) Long Gates

Hook To Bolt Diameter: 19mm
Hook to Bolt Total Length: 280mm
Hook to Bolt length (Excluding Pin): 235mm
Hook To Drive Diameter: 19mm
Hook to Drive Length: 205mm
Hook to Drive length (Excluding Pin): 165mm

18″ Kit:
Top Strap Length (Straps only): 395mm
Top Strap Length (Including Pin Hole, i.e Total Length): 450mm
Bottom Strap Length (Straps only): 135mm
Bottom Strap Length (Including Pin Hole, i.e Total Length): 190mm
Suitable for Gate Length: 5 Feet (1.525m) – 7 Feet (2.13m) Long Gates

Hook To Bolt Diameter: 19mm
Hook to Bolt Total Length: 280mm
Hook to Bolt length (Excluding Pin): 235mm
Hook To Drive Diameter: 19mm
Hook to Drive Length: 205mm
Hook to Drive length (Excluding Pin): 165mm

24″ Kit:
Top Strap Length (Straps only): 550mm
Top Strap Length (Including Pin Hole, i.e Total Length): 605mm
Bottom Strap Length (Straps only): 135mm
Bottom Strap Length (Including Pin Hole, i.e Total Length): 190mm
Suitable for Gate Length: 8 Feet (2.44m) – 14 Feet (4.27m) Long Gates

Hook To Bolt Diameter: 19mm
Hook to Bolt Total Length: 280mm
Hook to Bolt length (Excluding Pin): 235mm
Hook To Drive Diameter: 19mm
Hook to Drive Length: 205mm
Hook to Drive length (Excluding Pin): 165mm
